LeddarVision for ADAS L2/L2+

  • Level 3 performance at Level 2 cost
  • Real-time detection, classification and tracking
  • Based on camera and radar; LiDAR data not necessary
  • 3D bounding boxes
  • Object position, orientation and velocity
  • Supports multiple sensor providers

Featured Products

The newly released LeddarVision family of automotive software products addresses the challenges Tier 1-2 suppliers and OEMs struggle with when developing Level 2/2+ ADAS applications targeting a 5-star NCAP 2025/GSR 2022 rating, such as solving safety issues and finding scalable fusion and perception software that offers high performance at a low cost.

LVF-E

LeddarVision Front – Entry

For customers seeking to develop entry-level ADAS safety and highway assistance L2/L2+ applications

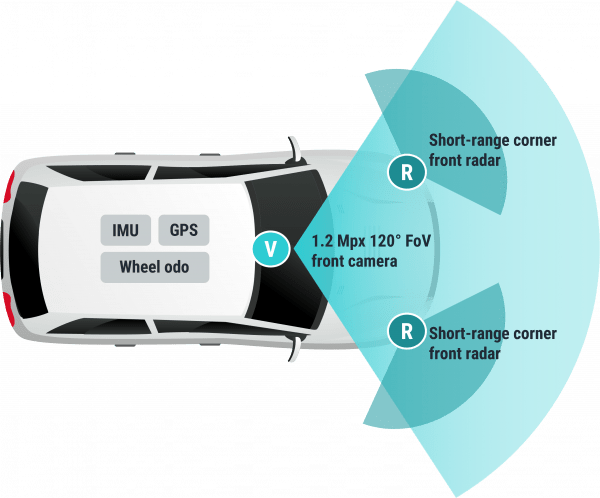

LVF-E is a comprehensive front-view fusion and perception stack for entry-level ADAS L2/L2+ highway assist and 5-star NCAP 2025/GSR 2022. LeddarTech’s AI based low-level fusion (LLF) technology pushes the performance envelope, doubling the effective range of the sensors and enabling, for the first time, a solution with only a single 1 to 2-megapixel 120-degree front camera and two short-range front corner radars in a 1V2R configuration. Low-cost sensing, together with efficient implementation on Texas Instruments’ TDA4VM-Q1 processor, achieves the lowest system cost for L2/L2+ entry-level ADAS. Production samples now available!

Read the Press Release

LVF-E Product Page

LVF-H

LeddarVision Front – High

For customers seeking to develop premium ADAS safety and highway assistance L2/L2+ applications

With sensor configuration extended to 1V5R based on a single 3-megapixel 120-degree camera, single front medium-range radar and four short-range corner radars, the LVF-H stack extends the perception support to highway assist applications, including 160 km/h adaptive cruise control, 200-meter range and semi-automated lane change. It also enhances the NCAP 2025 support for overtaking/reverse/dooring scenarios. Furthermore, with efficient implementation on the Orin platform, low-cost sensing achieves economical front-view L2/L2+ premium ADAS.

Read the Press Release

LVF-H Product Page

LVS-2+

LeddarVision Surround-View

For premium ADAS L2/L2+ highway assist and 5-star NCAP 2025/GSR 2022 applications

The newly launched LVS-2+ is a comprehensive fusion and perception software stack supporting premium surround-view L2/L2+ ADAS highway assistance and 5-star NCAP 2025/GSR 2022 safety applications. LeddarVision™ AI based low-level fusion (LLF) and perception technology enables implementation of entry-level to premium ADAS utilizing a single architectural approach, efficiently scaling computational power with sensor additions and reducing rework efforts with sensor changes. Based on LeddarVision architecture, LVS-2+ efficiently extends the LVF front-view product family 1VxR sensor configuration to a 5V5R configuration, enhancing support to TJA and HWA applications, enabling automated lane changes, overtaking and extended speed range adaptive cruise control (ACC).

Read the Press Release

LVS-2+ Product Page

LVP-H

LeddarVision Parking

For automated parking and parking assist

LVP-H is a comprehensive fusion and perception software stack supporting premium ADAS L2/L2+ automated parking and parking assist applications, including intelligent parking assist (IPA), remote parking assist (RPA) and maneuver assist (MA). LVP-H enhances valid parking detection probability to over 95% with low false detections in challenging ODDs and environments and provides superior dynamic and static object detection for enhanced safety, including support to advanced NHTSA IPA safety scenarios. LVP-H utilizes a 4V4R sensor configuration, having four fish-eye cameras with 190° FoV, 1.3 Mpx resolution and four short-range corner radars with support to extension of up to 12 ultrasonic sensors.

Read the Press Release

LVP-H Product Page

ADAS L2/L2+ Environmental Model

The video sequence below presents the LeddarVision perception in action based on a dataset from nuScenes™ captured with a system using 6 cameras and 5 radars. (LiDAR data is being used for the sole purpose of visualization)

LeddarVision perception software provides highly efficient detection, classification and tracking of objects for vehicle automation up to Level 2+ based on camera and radar sensor data. LeddarVision solutions meet the perception requirements of L2 and L2+ driver-assist applications without the need to rely on LiDAR sensors.

Related Information

LeddarVision Performance Video in Various Driving Conditions

LeddarVision is a high-performance, sensor-agnostic automotive-grade solution that delivers highly accurate 3D environmental models. This scalable software supports all SAE autonomy levels by applying AI and computer vision algorithms to fuse raw data from sensors employed in L2 to L5 applications.

Watch the Video

The Journey to Smarter Parking With LeddarTech and Ficosa

In December 2022, Ficosa and LeddarTech announced the signing of a development and commercialization agreement for the development of a smart automatic parking assistant. This 8-min video, featuring Ficosa and LeddarTech, lifts the lid on the development and commercialization agreement.

Watch the Video

Low-Level Fusion and Perception for NCAP

This white paper explains the growing role of ADAS in NCAP. It delivers an overview of the scenarios, conditions and environments in which testing is performed and the role that perception systems must play for vehicle manufacturers to stay ahead of the NCAP requirements.

Read Now
